2590m3/H Roots Vacuum Pump Painting Surface Oil Free Low Noise

Model Number : BSJ600LC

Certification : CE

Place of Origin : China

MOQ : 1 set

Supply Ability : 1000 sets per month

Delivery Time : 5-30 days

Packaging Details : wooden box

Surface : Painting

Color : Army Green

Pumping Rate : 2590 m3/h(43175L/min)

Material : cast iron

G.W. : 420kgs

N.W. : 368kgs

Meas. : 151*67*71cm

Features : Corrosion resistance

Contact Now

600L/s (2000m³/min) 7.5kW Mechanical Army Green Booster Pump, Roots Pump BSJ600LC

Description :

Roots vacuum pumps, which are also called Roots blowers, are rotary plunger-type pumps where two symmetrically shaped impellors rotate in opposite directions inside the pump housing.

Characteristics:

The use of an oil-free intermediate seal, multiple sealed ways to ensure a high clean vacuum environment in the rotor chamber.
Advanced processing to ensure the good geometrical symmetry of the rotors, as well as low noise and long service life.

Technical Parameter :

Model		Units	BSJ600LC
Pumping Rate	50 Hz	m³h^-1 / Lmin^-1	2590/43175
	60 Hz		3110/51844
Max Inlet Pressure	50Hz	Pa	8.0x10³
	60Hz	Pa	6.7x10³
Ultimate Vacuum		Pa/ mbar	0.04/4×10^-4
Motor Power		kW(hp)	7.5 (10.0)
Inlet		--	ISO160
Outlet		--	ISO100
Cooling Method		Water-cooled
Lubricating oil specification			BSO46
Gear Cover		L	3.5
Hydraulic		L	6.5
Shaft seal reservoir		L	1.5
Ambient Temp.		℃	5~35
Inlet		-	ISO160
Outlet		-	ISO100

Note: The value of 'Ultimate Pressure' in this sheet is measured by Pirani gauge when the Baosi special pump oil is used,and the value should be 4x10^-3 if the Mcleod gauge is used.

Performance Curve:

2590m3/H Roots Vacuum Pump Painting Surface Oil Free Low Noise

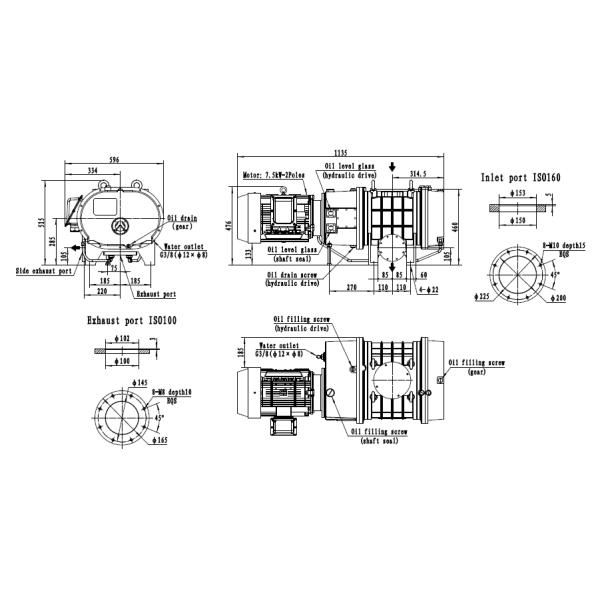

Dimensions:

2590m3/H Roots Vacuum Pump Painting Surface Oil Free Low Noise

Applications

We provide you with individual support,we train you and we offer 24/7 service worldwide.

Vacuum distillation
Vacuum packaging
Thin film coating
Freez drying
Electrical engineering
Printing
Surface treatment technique
Wind Energy
Ceramics and glasses
